DV-16-A05-NN1-200E-000

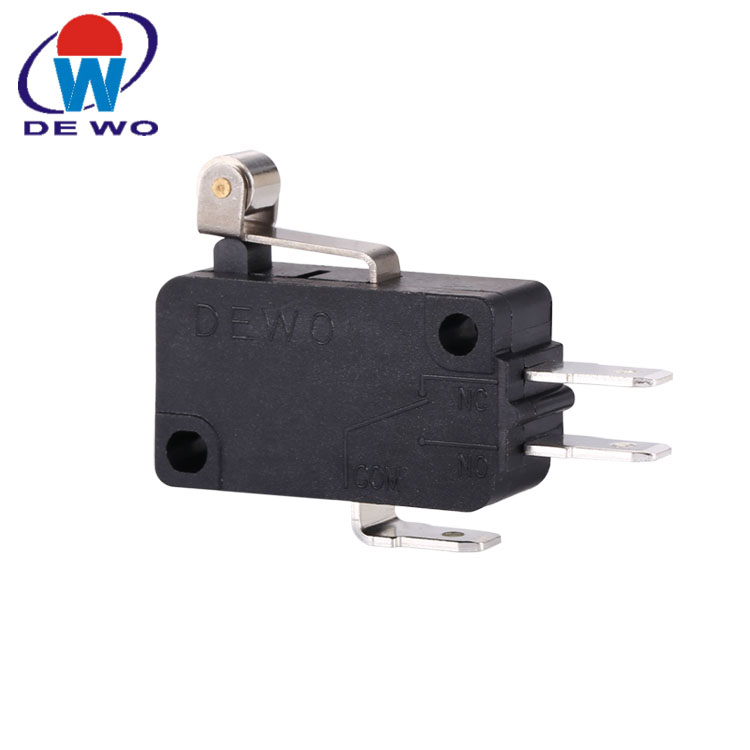

Item: Micro switch
Part Number:DV-16-A05-NN1-200E-000
Specification:
Rating:
16A 125/250VAC
10A 125/250VAC
5A 125/250VAC
Contact Resistance:≤100m? Max
Insulation Strength:≥100m? DC500V
Temperature: 40T125
Test Voltage: AC1500V 1 minute
Operating Force:0.5N-2.5N

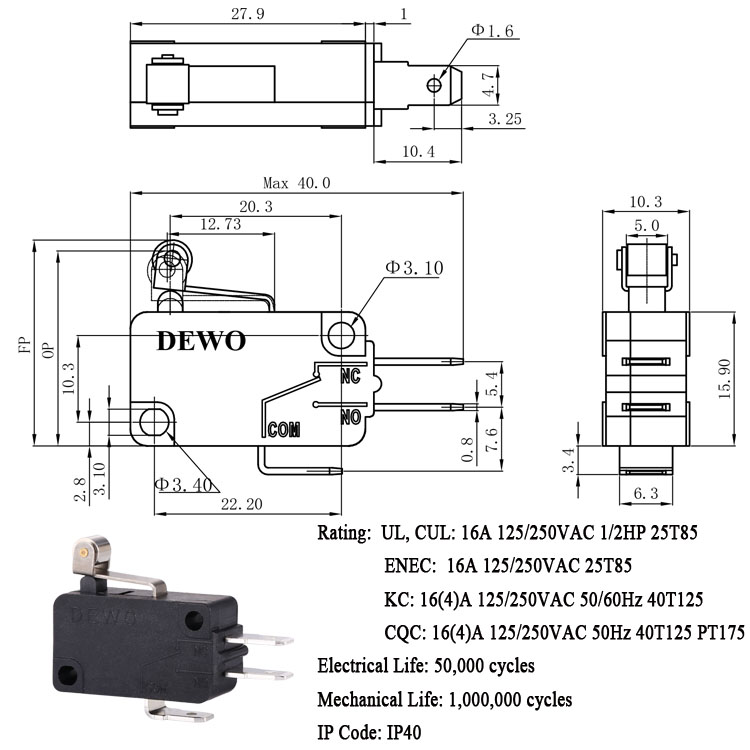

Free position:18.5mm±0.5mm
Operating position:17.5mm±0.5mm
Terminal type:187 quick connect terminal/250 quick connect / Solder terminal/ left side PCB terminal/ right side PCB terminal/ Screw terminal
Soldering Temperature：350℃ 3-5S
Ambient Temper.Used: -40℃～+125℃
Electronical life: 5E4
Mechanical life:1,000,000 cycles
Function: SPDT/SPST-NO/SPST/NC
Application:
Microwave oven
Mouse
Electronic equipment
Instrumentation
Power Systems
Household appliances
Aerospace, ship, missiles
Military field and so on
Certification:
UL, CQC, ENEC,KC and SO ON
